Shining 3D · Launched June 18, 2026
Introducing the
Ceramix Nano.
Same-day permanent crowns. Under 10 minutes. Smaller than your coffee maker. Pays for itself in under 6 cases.
After that, every crown goes straight to your bottom line.
Includes 1 free box of A2 capsules + 50 free AI crown designs at launch
Let’s Talk Numbers
$1,168 per crown.
Paid for in under 6 cases.
At the CDT D2740 average reimbursement rate for ceramic crown restorations, the Ceramix Nano pays for itself before most practices finish their first week of production. After that, every crown is margin — minus a lab bill that no longer exists.
$1,168
Avg. Crown Reimbursement
CDT D2740 — ceramic-based indirect restoration
5–6
Cases to Break Even
Less than one week for most practices
$0
Lab Bill After Case 6
In-house production eliminates lab fees entirely
<$0.40
Aesthetic Finishing Cost
Per restoration with optional N2/CO2 gas curing

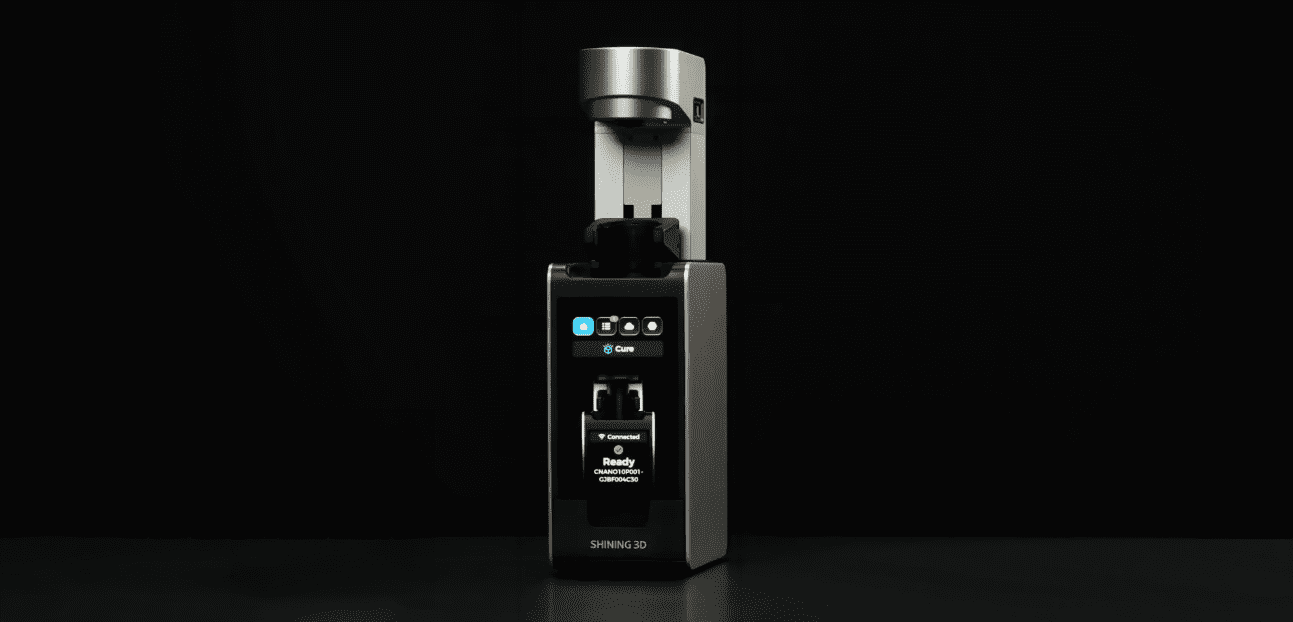

The Device
The 4.6 lb
“All-in-One” Micro-Factory
At just 5.31″ × 3.43″ × 10.79″, the Ceramix Nano is smaller than most Keurig coffee makers. It prints. It cures. All in the same device. No separate curing unit. No additional equipment. Just one compact device that sits on your countertop and produces permanent chairside restorations in under 10 minutes.
Capsule-Based Material System
No open resin. No drips. No smell. Pop in a capsule and print. Up to 3 crowns per capsule.
APS Proprietary Printing Technology
Shining 3D’s Advanced Printing System drastically boosts clinical efficiency and reduces chairside waiting time.
Built-in 90°C Curing Module
High-precision printing and professional curing in one unified 4.6 lb system.
Compact & Portable
Move between operatories. Take it to satellite offices. Small enough to carry in a bag.

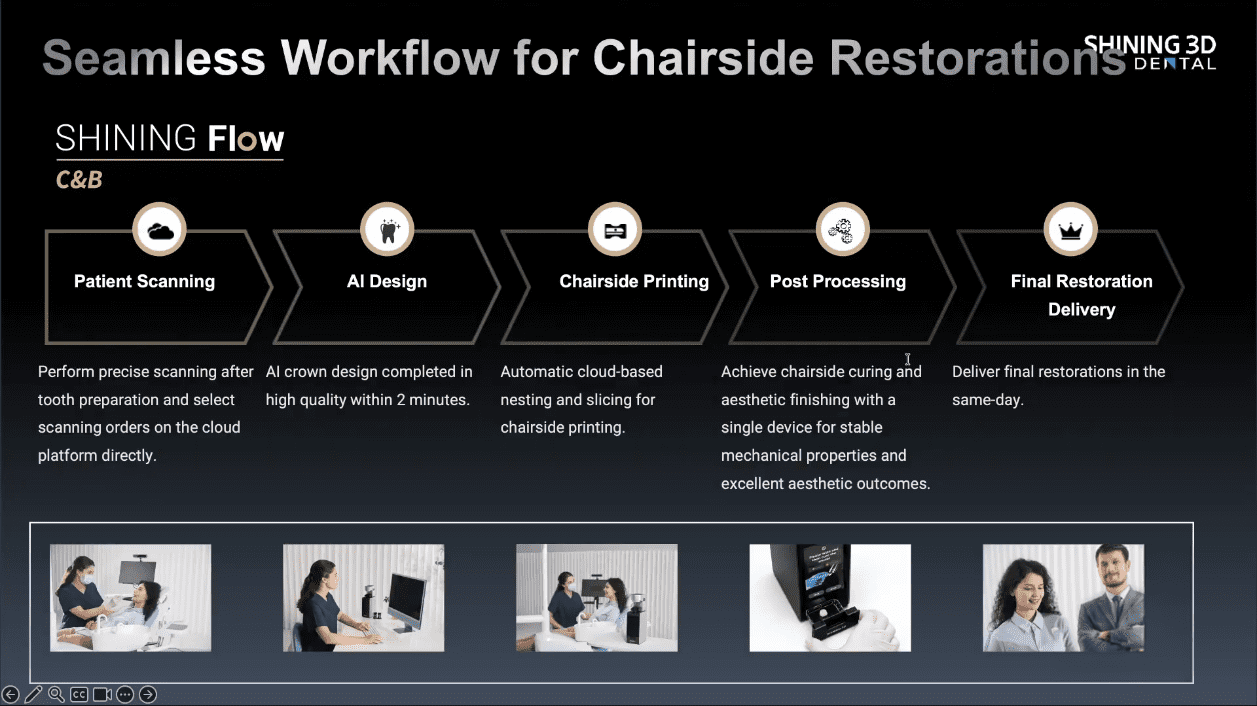

The Workflow
Scan. Design. Print. Seat.
One Visit. Every Time.
The Shining Flow C&B workflow connects your intraoral scanner, AI design platform, and the Ceramix Nano into one seamless same-day restoration experience.
🦷
Patient Scanning
Scan after prep. Send to cloud directly.
🤖
AI Design
Crown designed in ~2 minutes. Review and approve online.
🖨
Chairside Printing
Cloud-based dispatch to the Ceramix Nano. Under 10 minutes.
✨
Post Processing
Cure and finish in the same device. Optional aesthetic gas curing.
👑
Final Delivery
Patient walks out with permanent restoration. Same visit.
Lumicera Resin
FDA Class II 510(k) Cleared.
Insurance Reimbursable.
Lumicera ceramic-dominant resin with over 55% ceramic filler is FDA Class II 510(k) cleared for permanent definitive restorations. Proven biocompatibility. Reimbursable under CDT D2740 at the same rate as milled or pressed ceramic restorations.
>55%
Ceramic Filler
Qualifies for CDT D2740 reimbursement per ADA 2023 update
200 MPa
Flexural Strength
Natural tooth is 210 ± 67 MPa — Lumicera matches it
10M
Chewing Cycles
At 800 N — far exceeds the 2.4M cycle 10-year benchmark
Complete the System
Everything You Need.
The Ceramix Nano is your starting point. Add Ceramix capsules for your preferred shades and the optional Aesthetic Kit for premium anterior finishing.
Optional Aesthetic Curing
Regular Cure → Strength.
Gas Cure → Aesthetics.
Standard curing in the Ceramix Nano brings Lumicera resin to full mechanical strength — 200 MPa, 10 million chewing cycles. For most posterior cases that’s everything you need.
For premium anterior finishing, the optional Aesthetic Kit adds N2/CO2 gas curing after stain and glaze — locking in a flawless, lifelike surface finish in approximately 30 seconds of oxygen-free curing.
Running Cost
Standard N2/CO2 cartridges (3/8″-24 UNF) — under $2 each, ~5 curing cycles per cartridge. Available anywhere online. Less than $0.40 per restoration.
Launch Promotion
Order Now and Get
Over $200 in Free Extras
Every Ceramix Nano purchased at launch includes two bonuses to get your practice up and running immediately.
📦
1 Free Box of A2 Capsules
3 Ceramix capsules in A2 shade — the most popular shade — included with every Ceramix Nano. A $67 value. Start printing the day it arrives.
🤖
50 Free AI Crown Designs
50 AI crown design credits via the Shining 3D Dental Cloud — a $50–$150 value. Enough to get your whole team trained and producing confidently before you spend a dollar on design credits.
Questions? Call 1-800-821-8962 or email sales@sodiumdental.com
Technical Specifications
Complete Spec Sheet
| Dimensions | 5.31″ × 3.43″ × 10.79″ |
| Weight | Under 4.6 lbs |
| Print Speed | Under 10 minutes per crown · Bridge 12–20 mins |
| AI Design Time | ~2 minutes per crown |
| Capsule Yield | Up to 3 crowns per capsule · 40mm build depth |
| Built-in Curing | Yes — 90°C professional curing module |
| N2/CO2 Curing | Yes — with optional Aesthetic Kit ($700) |
| Material | Lumicera Ceramix — FDA Class II 510(k) · >55% ceramic filler · 200 MPa |
| Available Shades | BL · A1 · A2 · B1 · C2 — more shades coming |
| Applications | Crown · Veneer · Inlay · Onlay · Bridge |
| CDT Codes | D2740 (~$1,168) · D2642–D2644 ($800–$1,300) · D2650–D2652 ($400–$650) |
| Compatibility | Mac and Windows via Shining 3D Dental Cloud |
| AI Design Cost | $1–$3 per crown — charged only when you confirm and download |
Why Sodium Dental
Certified Shining 3D Dealer.
Real Support After the Sale.
We’ve been a certified Shining 3D dealer since the beginning. Setup, training, and support included. Real people answer the phone.
🏆
Certified Shining 3D Dealer
Direct access to Shining 3D support, training, and product updates.
🎓
Training Included
We train your whole team on the Ceramix Nano workflow — not just the day the box arrives.
📞
Real People Answer
Questions after the sale? Call us. We pick up. 1-800-821-8962.
Ready to Flow Into Future?
The Ceramix Nano is available now. Order online or call us to talk through whether it’s the right fit for your practice.
Prefer to talk first?
CDT D2740 reimbursement rates are averages based on ADA 2023 ceramic material definition guidelines. Actual reimbursement varies by payer and plan. AI crown design pricing applies to Shining 3D Dental Cloud credits purchased through Sodium Dental. Launch promotion of 50 free AI crown designs and 1 free box A2 capsules available for a limited time while supplies last. Sodium Dental is an authorized Shining 3D dealer. Lumicera is a trademark of Shining 3D Dental.
